·Feature

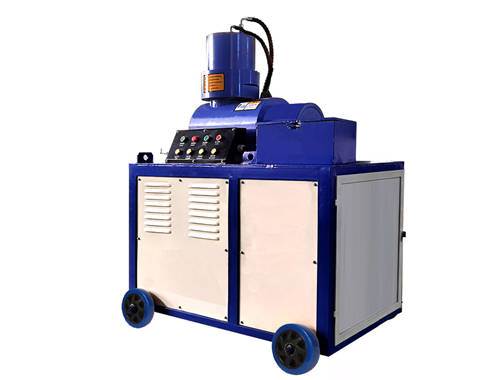

This machine is the construction of reinforced steel connection of the upper process machinery. Its main function is to the building with threaded rebar head squeeze thick, to increase the diameter of the steel head purposes.
·Technological Parameters
Capacity: ￠16mm-￠40mm
Power: 7.5KW
Motor : 380V/50HZ/3Phase
Hydraulic pump: 31.5MPa
Hydraulic oil: 46#
Size: 1250 ×900×1650mm
Weight: 1000KG.
Capacity: ￠16mm-￠50mm
Power: 11KW
Motor : 380V/50HZ/3Phase
Hydraulic pump: 31.5MPa
Hydraulic oil: 46#
Size: 1350 ×950×1750mm
Weight: 1200KG.
